General Information
Products
| Manufacturer | Bosch |

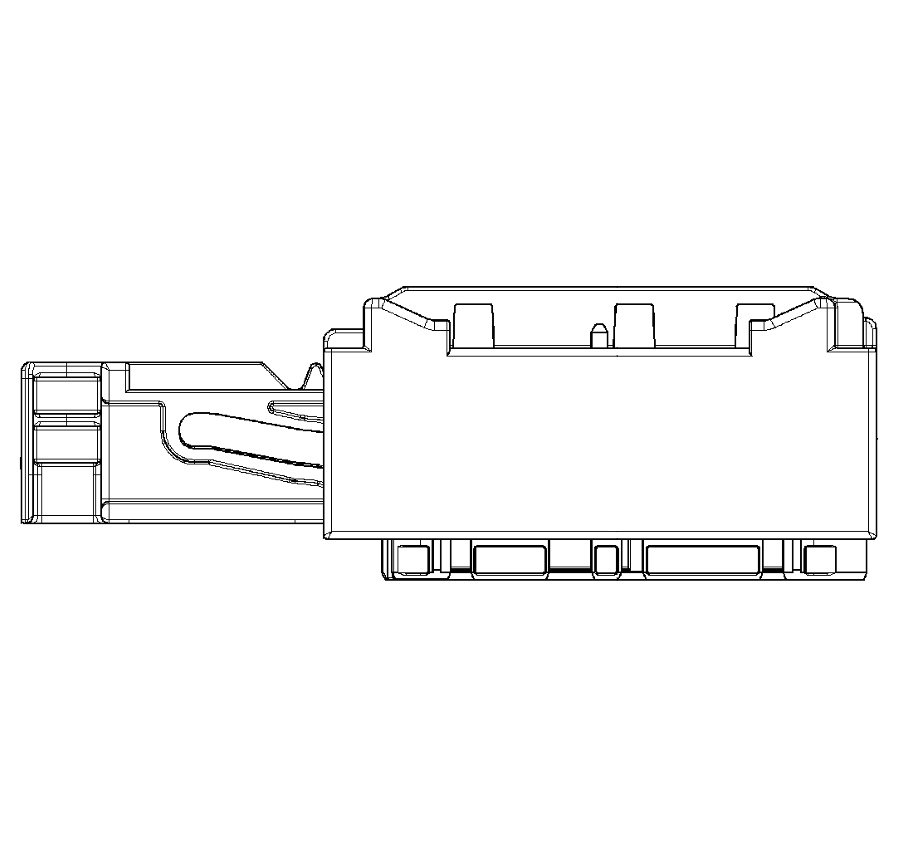

| Product Type | Contact Housing |
| Number of positions | 105pcs |
| Code | 1 |
| Blade width | 1.2mm 2.8mm |
| Connection System | Wire-to-Device |
| Gender | Female |
| Sealed connection | Yes |
| Primary Locking (Terminal) | Clean body and lance |
| Colour | black |
| Body Material | PA 66 GF |
| Length | 106.6mm |
| Width | 48mm |
| Height | 36.55mm |
| Temperature range, min. | -40° |
| Temperature range, max. | 130° |
| Terminal Sealing | Single wire and mat seal |
| Type of seal (connector) | radial seal |
| Type of seal (cable) | single wire seal for BTL 2.8 and Sealing plate for Matrix 1.2 |
| Type of locking mechanism (connector) | locking lever / locking slider |
| Secondary locking | Yes |
